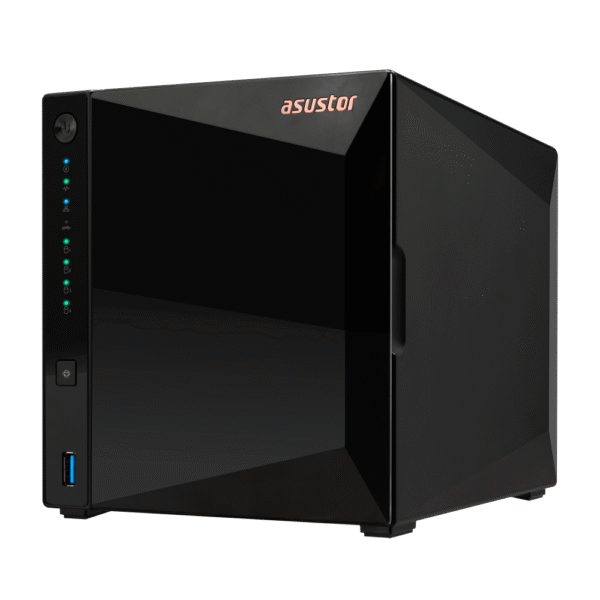

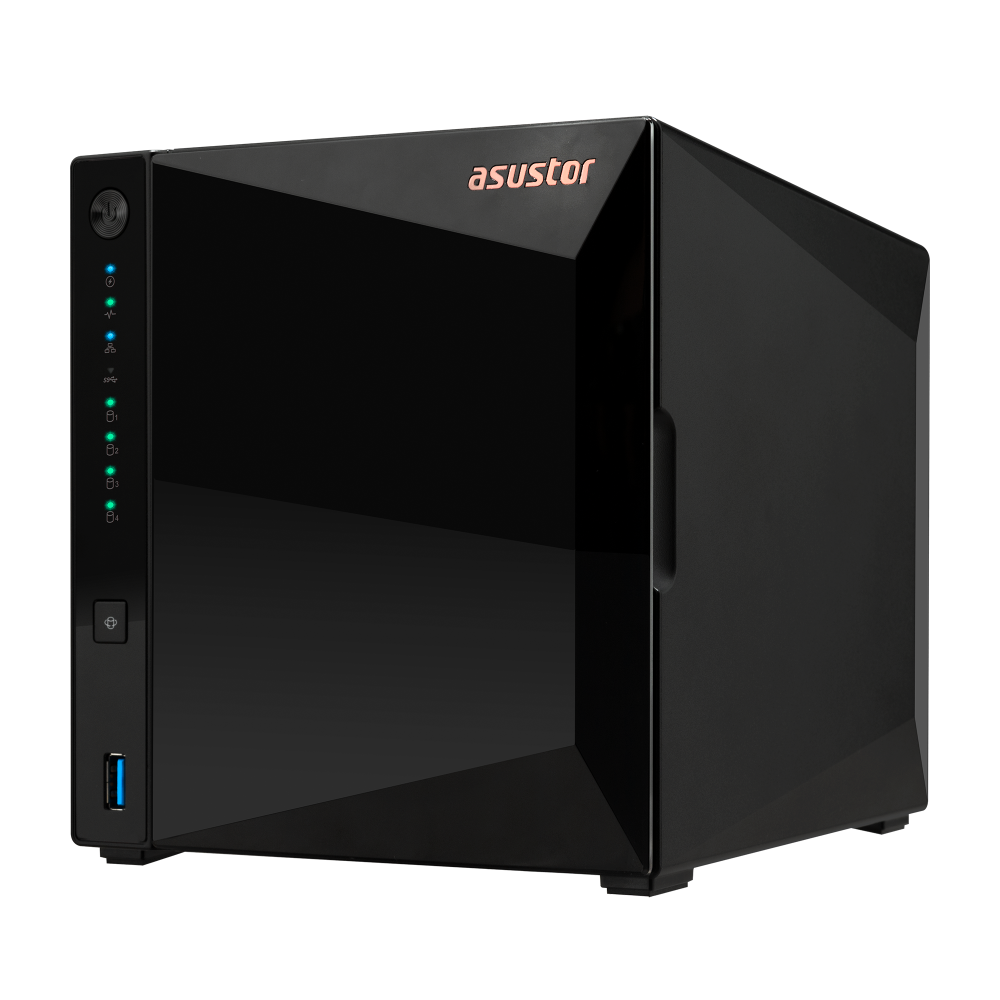

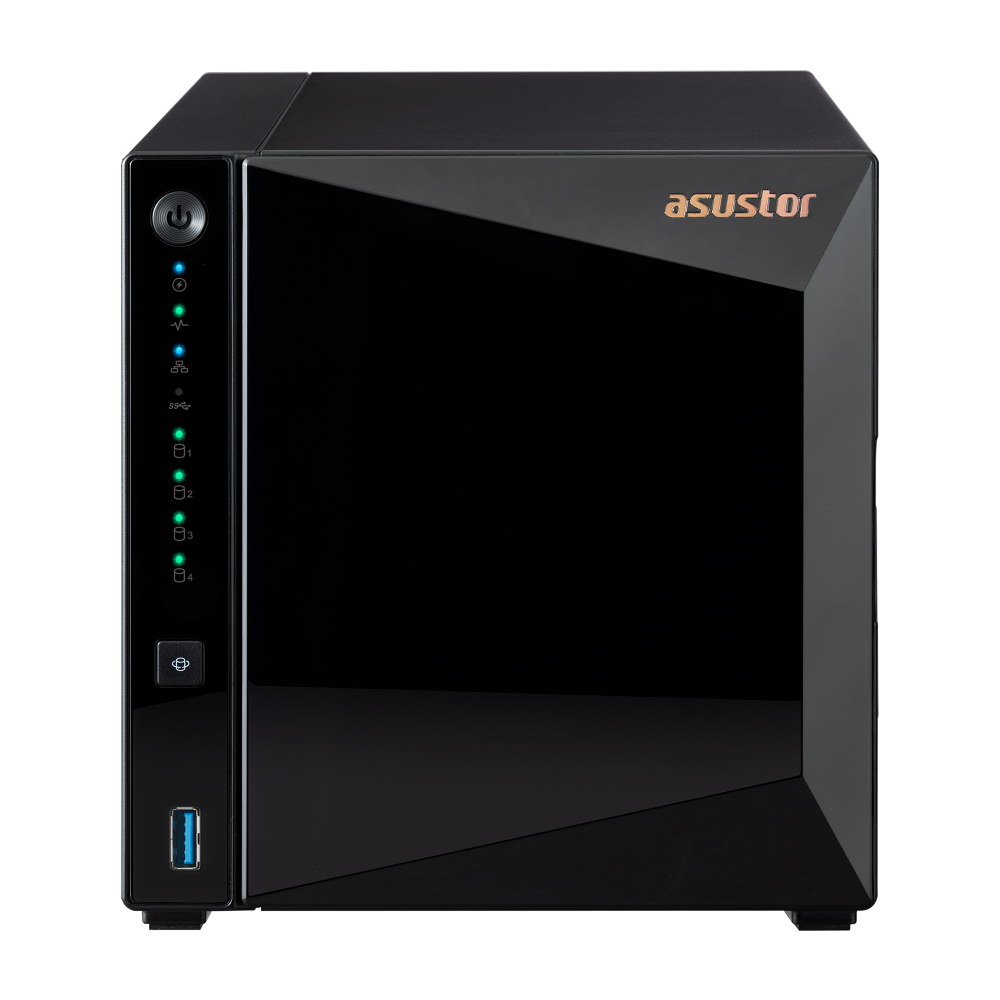

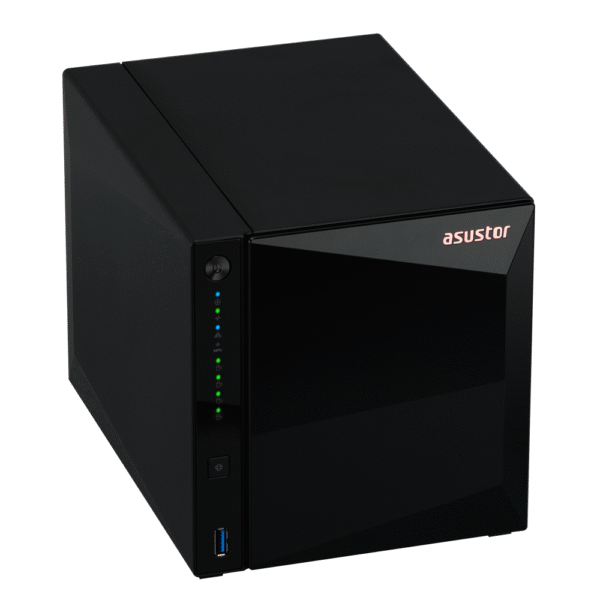

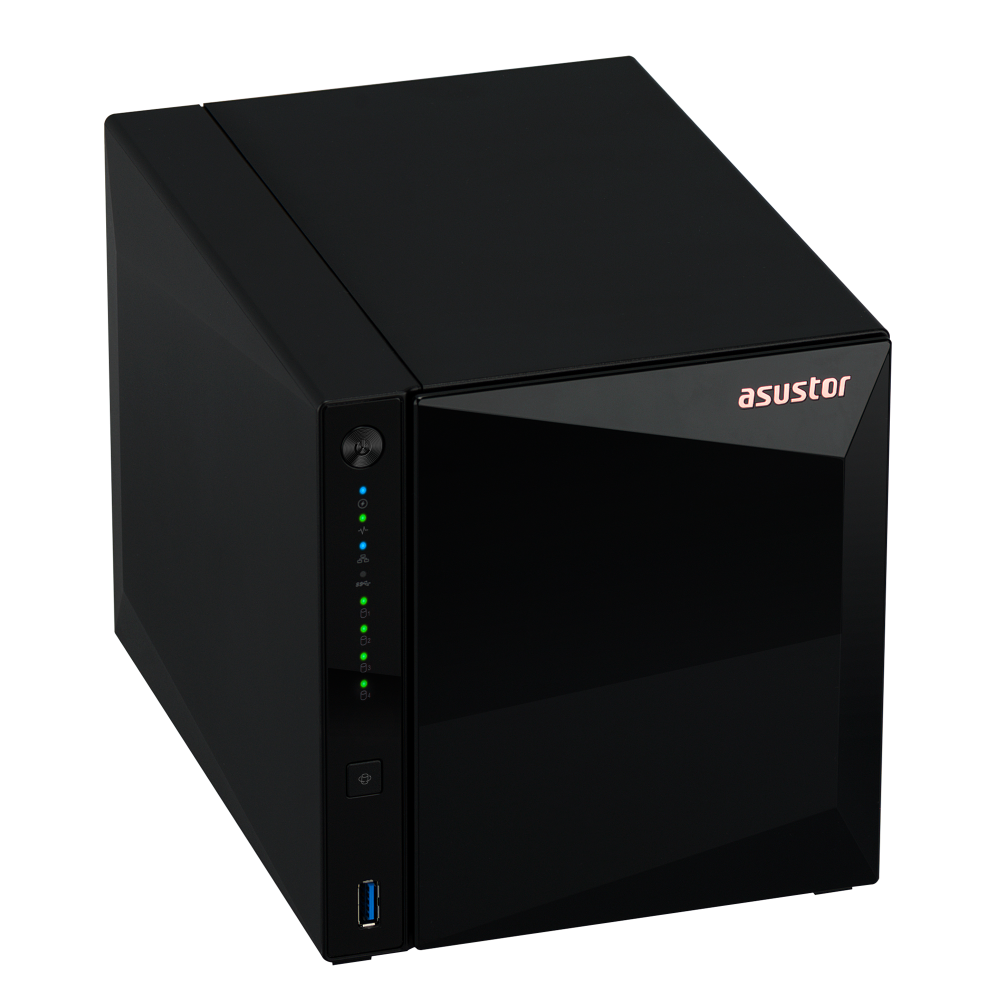

Asustor AS3304T – NAS – Network Storage Enclosure

🔧 Key Specifications

• Processor: Realtek RTD1296 Quad-Core 1.4 GHz (64-bit ARM architecture) ​

• Memory: 2 GB DDR4 (non-expandable) ​

• Drive Bays: 4 x SATA3 6Gb/s; supports 3.5″/2.5″ HDDs and SSDs ​

• Maximum Internal Raw Capacity: Up to 72 TB (18 TB HDD x 4) ​

• RAID Support: Single, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 ​

• Network Interface: 1 x 2.5 Gigabit Ethernet port (2.5G/1G/100M)

• USB Ports: 3 x USB 3.2 Gen 1 Type-A ​

• Flash Memory: 8 GB eMMC ​

• Dimensions: 170 mm (H) x 174 mm (W) x 230 mm (D) ​

• Weight: Approximately 2.2 kg ​

• Power Consumption:

  • Operation: 23.1 W

  • Disk Hibernation: 10.1 W ​

• Operating System: ASUSTOR Data Master (ADM) 4.0 ​

• Warranty: 3 years ​

🚀 Performance & Features

• High-Speed Networking: The 2.5 Gigabit Ethernet port offers more than double the performance of standard Gigabit connections, facilitating faster file transfers and smoother streaming experiences.

• 4K Multimedia Support: Equipped with hardware decoding capabilities, the AS3304T can transcode 10-bit 4K H.265 media, ensuring smooth video playback through applications like LooksGood. ​

• Tool-Free Installation: The NAS features a tool-less design with drive trays that allow for easy installation and hot-swapping of hard drives without the need for additional tools. ​

• Energy Efficiency: Utilizing DDR4 memory, the AS3304T offers up to 40% more efficiency compared to DDR3, reducing power consumption while maintaining performance. ​

• Quiet Operation: Designed for home environments, the NAS operates quietly, producing only 19 decibels of noise during system standby and 32 decibels during operation. ​

🛠️ Ideal Use Cases

• Personal Cloud Storage: Centralize your data and access it from anywhere with internet connectivity, ensuring your files are always within reach.​

• Multimedia Streaming: Stream high-definition content to various devices in your home, leveraging the NAS’s 4K transcoding capabilities.​

• Data Backup and Protection: Implement robust backup strategies with support for multiple RAID configurations, safeguarding your data against hardware failures.​

• Home Surveillance: Utilize the NAS as a surveillance center by connecting compatible IP cameras and managing recordings efficiently.
