π§ Key Specifications
-
Processor: Intel Celeron J4125 Quad-Core 2.0 GHz (burst up to 2.7 GHz)
-
Memory: 4GB DDR4 SO-DIMM (expandable up to 8GB via 2 slots)
-
Flash Memory: 8GB eMMC
-
Drive Bays: 2 x 3.5″/2.5″ SATA III drive bays
-
M.2 SSD Slots: 2 x M.2 2280 NVMe PCIe Gen2 slots for SSD caching
-
Network Interfaces: 2 x 2.5 Gigabit Ethernet ports (supporting link aggregation for up to 5 Gbps throughput)
-
USB Ports: 3 x USB 3.2 Gen 1 Type-A
-
HDMI Output: 1 x HDMI 2.0a (supports 4K@60Hz)
-
Maximum Internal Raw Capacity: 36 TB (2 x 18 TB drives)
-
RAID Support: RAID 0, RAID 1, and JBOD
-
Cooling: 70mm system fan
-
Power Supply: 65W external adapter
-
Dimensions: 230 mm (D) x 108 mm (W) x 163.5 mm (H)
-
Weight: Approximately 2 kg
-
Operating Temperature: 0Β°C to 40Β°C
-
Humidity: 5% to 95% RH (non-condensing)
-
Warranty: 3 years
π Performance Highlights
-

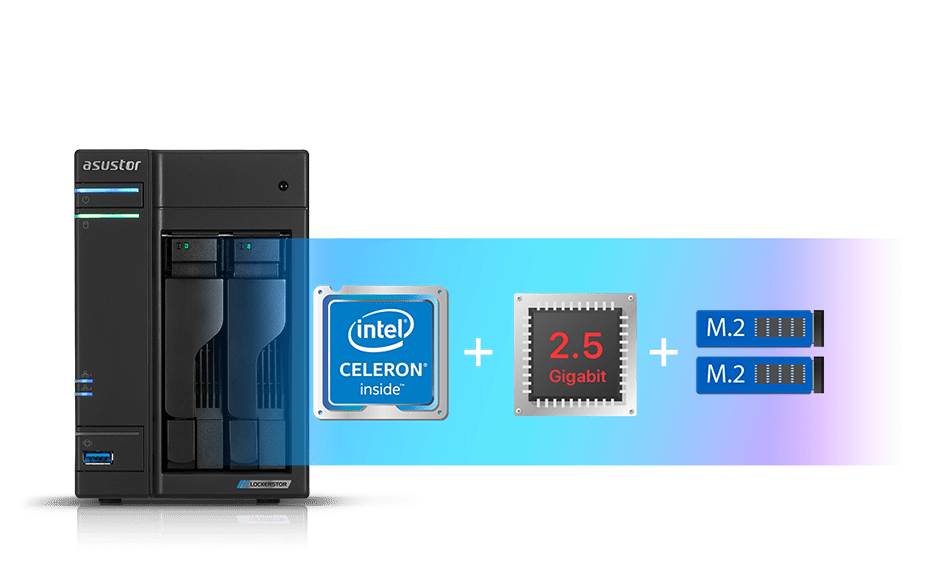

Enhanced Processing Power: The Intel Celeron J4125 processor, built on Gemini Lake architecture, offers up to 30% improved performance over previous generations, ensuring smooth multitasking and efficient data handling.
-
High-Speed Networking: Dual 2.5GbE ports support link aggregation, allowing combined throughput of up to 5 Gbps, facilitating rapid file transfers and seamless media streaming. β
-
SSD Caching and Expansion: Two M.2 NVMe slots enable SSD caching, significantly boosting IOPS performance for applications like databases and virtualization. β
-
4K Multimedia Support: HDMI 2.0a output supports 4K@60Hz, allowing direct media playback on compatible displays, turning the NAS into a versatile media center. β
π οΈ Use Cases
-
Content Creation: Ideal for video editors and photographers requiring fast access to large media files and efficient 4K transcoding capabilities.β
-
Business Applications: Supports virtualization, containerization (Docker), and various backup solutions, making it suitable for small to medium-sized business environments.β
-
Home Entertainment: HDMI 2.0a output and 4K support allow for direct media playback on compatible displays, enhancing home entertainment setups.
