🔧 Key Specifications
Processor: Intel Celeron N5105 Quad-Core (2.0 GHz base, up to 2.9 GHz burst)
Memory: 8GB DDR4 SO-DIMM (expandable up to 16GB via 2 slots)
Flash Memory: 8GB eMMC

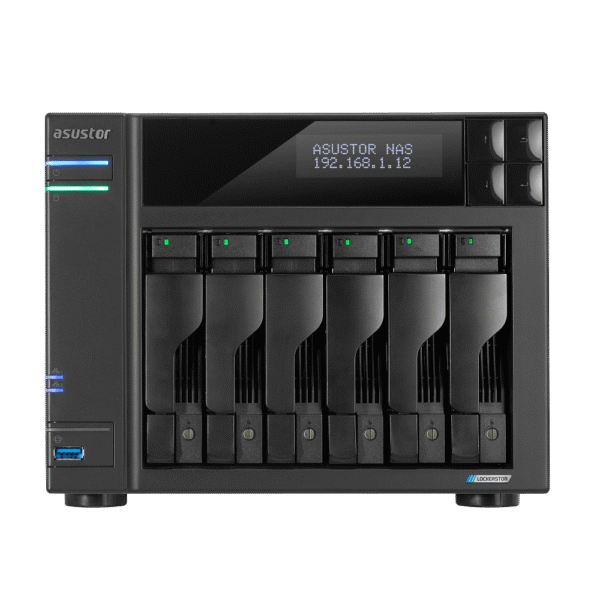

Drive Bays: 6 x 3.5″/2.5″ SATA HDD/SSD (hot-swappable)
M.2 Slots: 4 x M.2 2280 NVMe SSD slots for caching or storage expansion

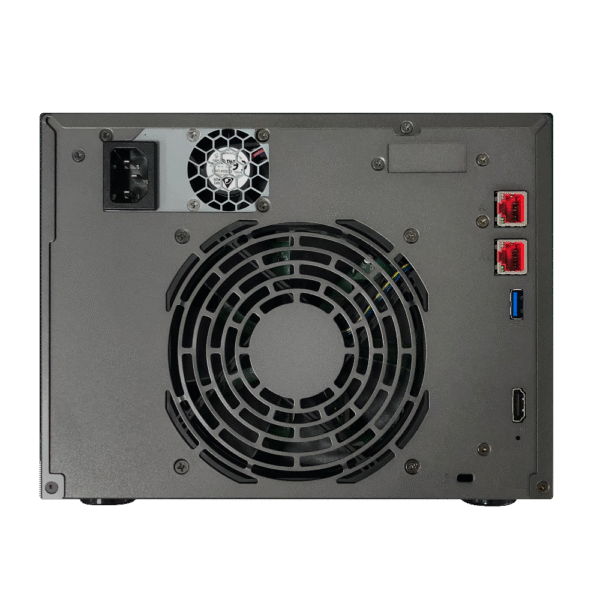

Network Interfaces: 2 x 2.5 Gigabit Ethernet ports (supporting link aggregation)
USB Ports: 2 x USB 3.2 Gen 2 (10 Gbps)
PCIe Expansion Slot: 1 x PCIe slot for optional 10GbE network card
HDMI Output: 1 x HDMI 2.0b (supports 4K output)
System Fan: 1 x 120mm for efficient cooling
Power Supply: 250W, 100V to 240V AC
Dimensions: 185.5 mm (H) x 233 mm (W) x 230 mm (D)
Weight: Approximately 4.4 kg (9.7 lbs)
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 5% to 95% RH (non-condensing)
Certifications: FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA
Warranty: 3 years
PB Tech
+3
ASUSTOR
+3
Tech Hyper Mart
+3
PB Tech
+3
nascloudworks.com
+3
ASUSTOR
+3
nascloudworks.com
+3
Tech Hyper Mart
+3
PB Tech
+3
nascloudworks.com
+3
PB Tech
+3
Tech Hyper Mart
+3
🚀 Performance Highlights
Storage Expansion: Supports up to 14 drives with expansion units, allowing for significant storage scalability.
RAID Support: Offers multiple RAID configurations including RAID 0, 1, 5, 6, 10, and JBOD for data protection and performance optimization.
Virtualization Ready: Compatible with VMware, Citrix, and Hyper-V, making it suitable for virtual machine hosting and development environments.
4K Multimedia Support: The HDMI 2.0b port enables direct 4K video output, ideal for media playback and surveillance monitoring.
Energy Efficiency: Low power consumption with operational power usage around 48.5W and disk hibernation at approximately 27.7W.
PB Tech
+3
Tech Hyper Mart
+3
ASUSTOR
+3
PB Tech
+3
nascloudworks.com
+3
Tech Hyper Mart
+3
🛠️ Use Cases
Content Creation: High-speed data access and large storage capacity cater to video editing and multimedia projects.
Business Data Management: Robust backup solutions, including snapshot technology and cloud integration, ensure data integrity and availability.
Virtualization: Supports running virtual machines and Docker containers, facilitating development and testing environments.
Media Center: With 4K HDMI output and multimedia applications, it serves as an effective media server for home or office use.
Reviews
There are no reviews yet.
