π§ Hardware Specifications
-
Processor: Realtek RTD1296 Quad-Core 1.4GHz
-
Memory: 1GB DDR4 (non-expandable)
-
Flash Memory: 8GB eMMC
-
Drive Bays: 2 x 3.5″ SATA III 6Gb/s
-
Maximum Internal Raw Capacity: Up to 36TB (18TB HDD x2)
-
Maximum Capacity with Expansion Units: Up to 200TB (with additional units)β
π Networking & Connectivity
-
Ethernet: 1 x 2.5 Gigabit Ethernet Port (2.5G/1G/100M)
-
USB Ports: 2 x USB 3.2 Gen 1 Type-A
-
Wake-on-LAN/WAN: Supported
π Storage & File System
-
RAID Support: Single, JBOD, RAID 0, RAID 1
-
Internal File System: EXT4
-
External File System: FAT32, NTFS, EXT3, EXT4, HFS+, exFATβ
π₯ Multimedia & Performance
-
4K Video Transcoding: Supports 10-bit 4K H.265 media with hardware decoding
-
Media Mode: Allocates up to 512MB of memory for multimedia tasks to ensure smooth playback
-
Noise Level: Approximately 18.6 dB (HDD idle)β
π Security & Backup Solutions
-
Data Encryption: AES-256 Bit Encryption
-
Backup Options:
-
Rsync (Remote Sync)
-
Cloud Backup
-
FTP Backup
-
External Backup
-
EZ Sync
-
-
Security Features:
-
Firewall
-
ADM Defender
-
VPN Support
-
SSL Certificate Connection
-
Automatic Logout
-
Antivirus Software (ClamAV)
-
2-Step Verificationβ
-
π Physical Specifications
-
Dimensions (H x W x D): 165 x 102 x 218 mm
-
Weight: 1.14 kg
-
Cooling Fan: 1 x 70 mm
-
Power Supply: External 65W adapter
-
Power Consumption:
-
Operation: 11.6W
-
Disk Hibernation: 5.97Wβ
-
π¦ Package Contents
-

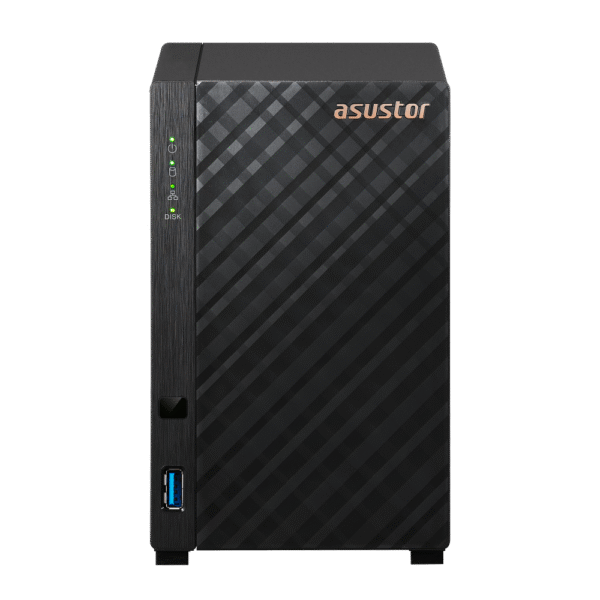

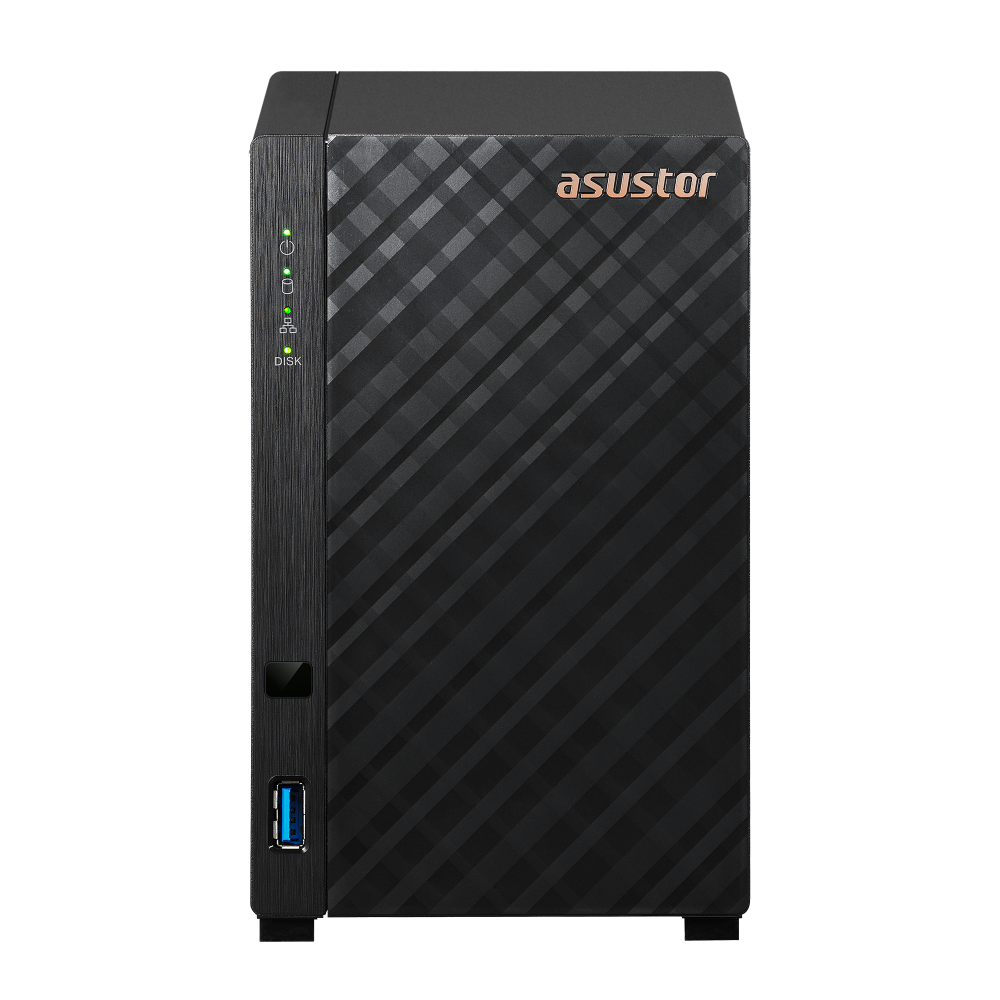

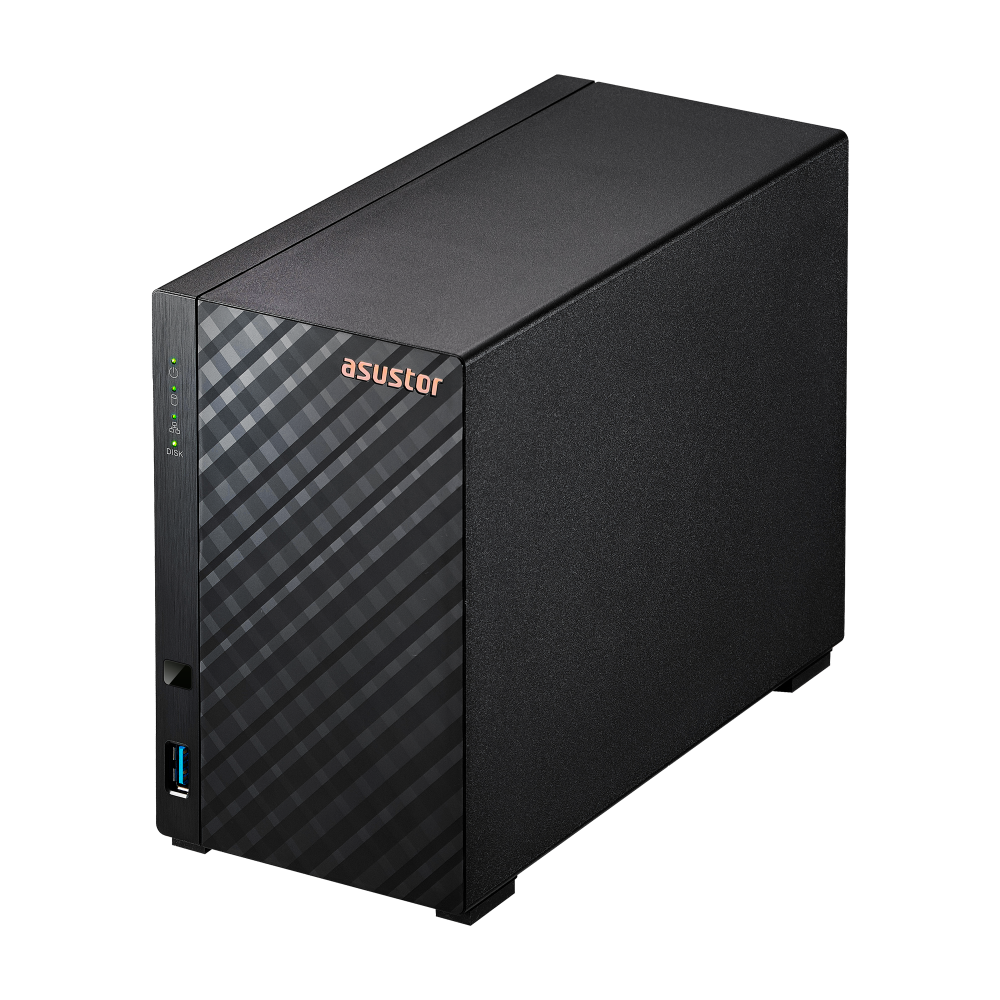

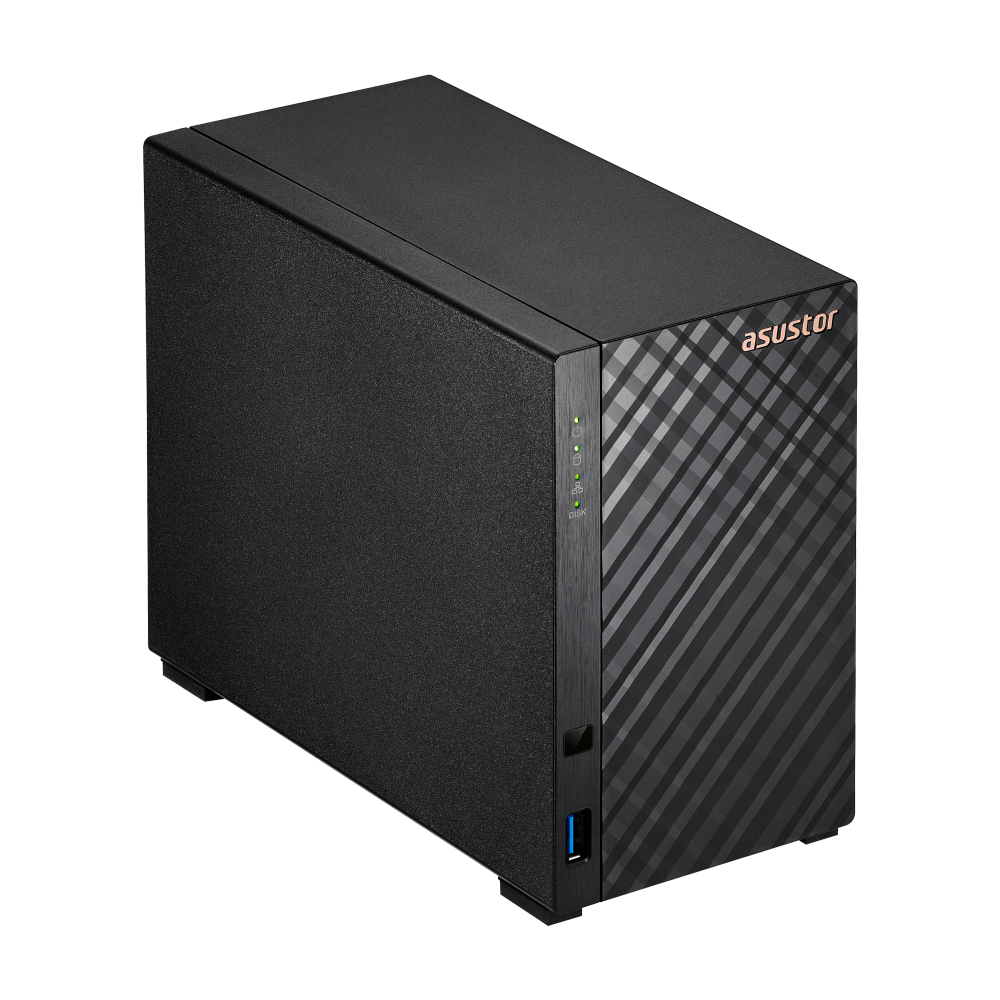

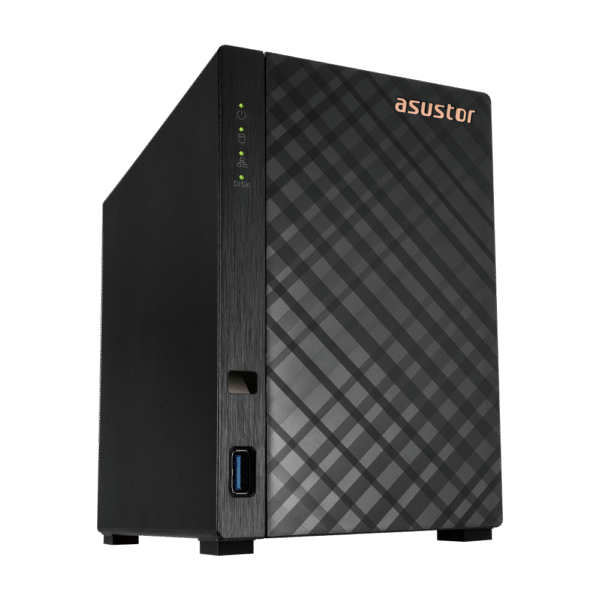

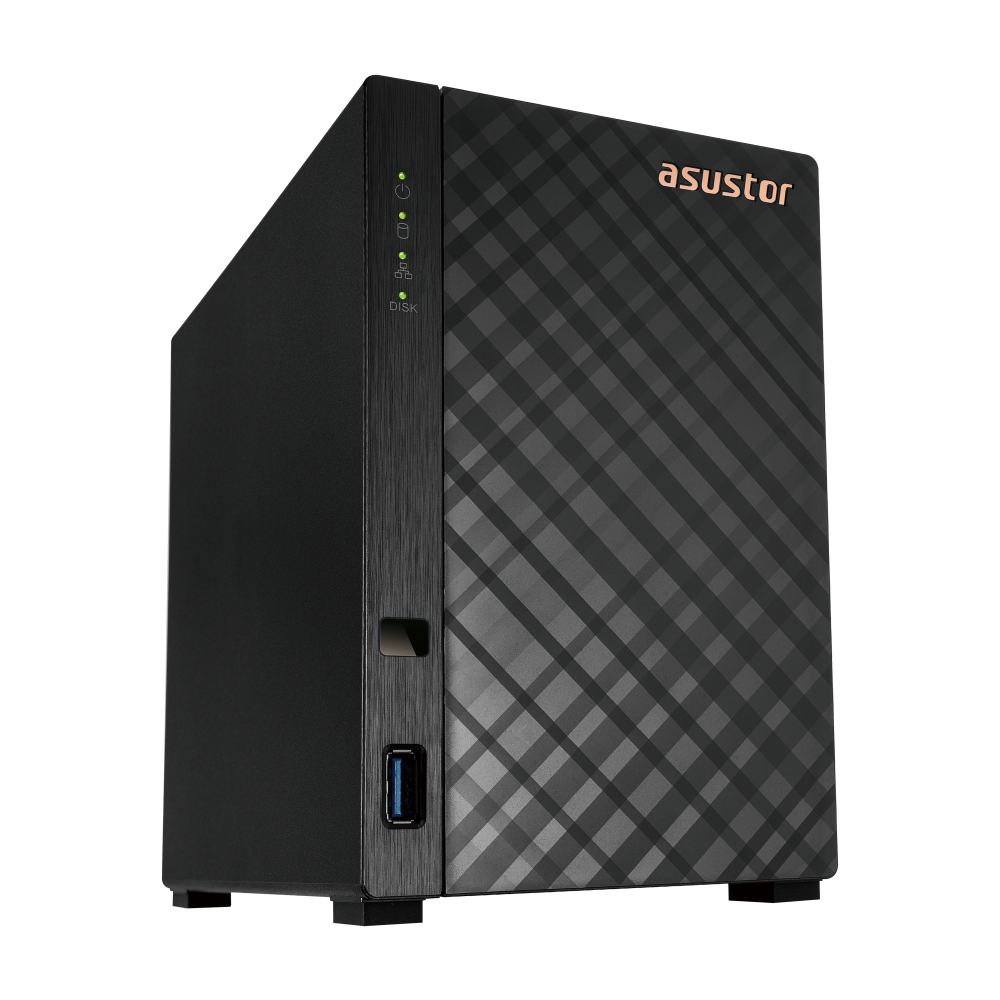

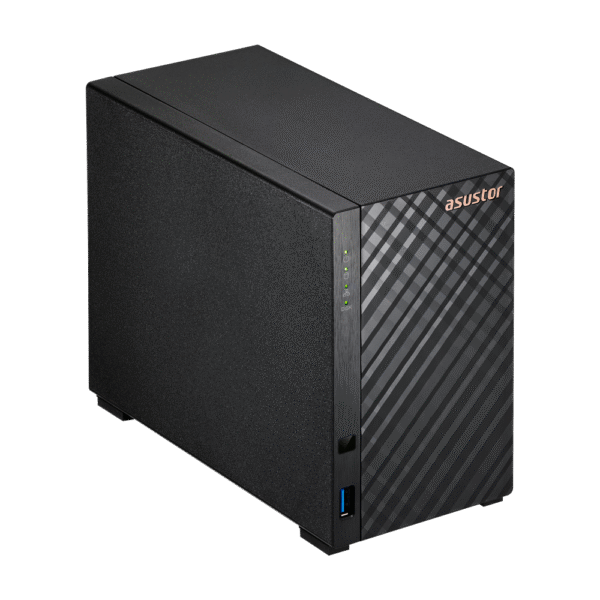

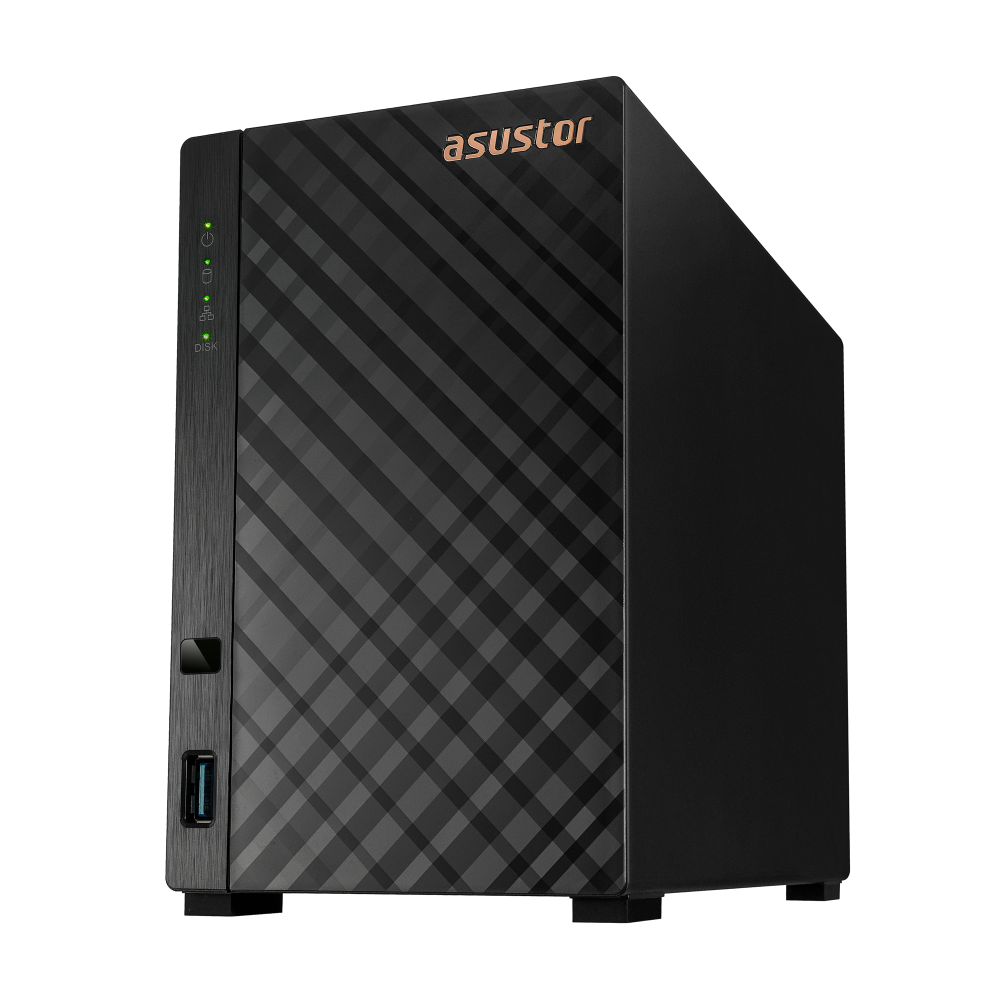

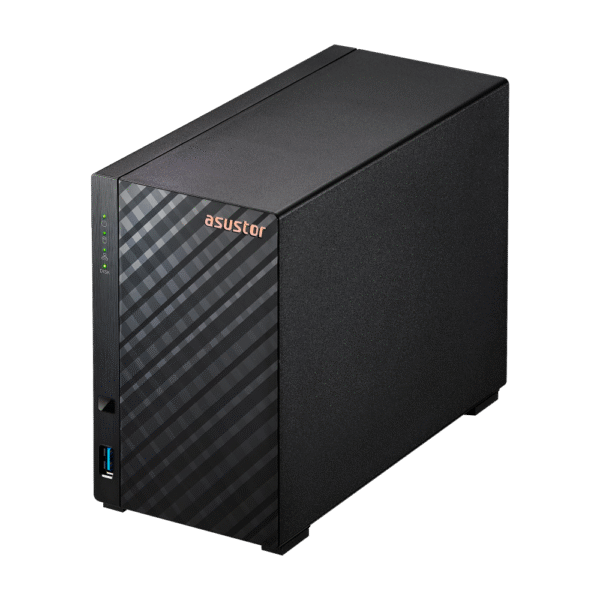

Drivestor 2 AS1102T NAS
-
Power Adapter & Cable
-
RJ45 Ethernet Cable (Cat 5e)
-
8 x Thumb Screws for 3.5″ Drives
-
Quick Installation Guide
