Key Features
-
HDMI 2.0 Compatibility: Supports 4K @ 60Hz, HDR, and HDCP 2.2 -

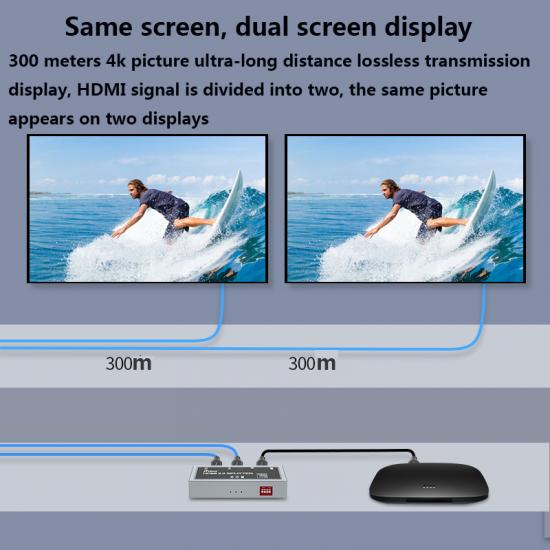

1×2 HDMI Splitter: Distributes 1 HDMI input to 2 HDMI outputs simultaneously
-
EDID Management: Auto or manual EDID settings for optimal display compatibility
-
High Bandwidth: 18Gbps ensures smooth, lag-free video and audio transmission
-
Audio Pass-Through: Supports LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio
-
Plug & Play: No drivers or software needed—easy setup
-
Durable Metal Housing: Improves heat dissipation and signal stability
Specifications
| Specification | Details |
|---|---|
| Model | DTECH HDMI Splitter 2.0 (1×2) |
| HDMI Version | HDMI 2.0 |
| Input | 1 × HDMI Type A Female |
| Outputs | 2 × HDMI Type A Female |
| Max Resolution | 4K @ 60Hz (3840×2160) |
| Bandwidth | 18Gbps |
| EDID Modes | Auto / Copy / Mixed |
| HDCP Support | HDCP 2.2 / 1.4 compliant |
| Supported Resolutions | 480p, 720p, 1080p, 4K @ 30Hz/60Hz |
| HDR Support | Yes (HDR10) |
| Audio Formats | Dolby TrueHD, DTS-HD, LPCM 7.1 |

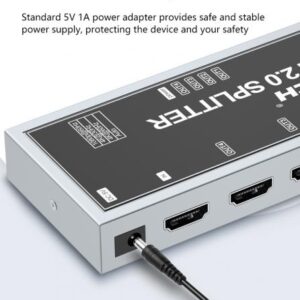

| Power Supply | DC 5V/1A (included) |
| Material | Metal casing |
| Dimensions (Approx.) | 80mm × 50mm × 20mm |
| Weight | Approx. 100g |
Package Includes
-
1 × DTECH HDMI Splitter 2.0 (1×2)
-
1 × 5V DC Power Adapter
-
1 × User Manual
