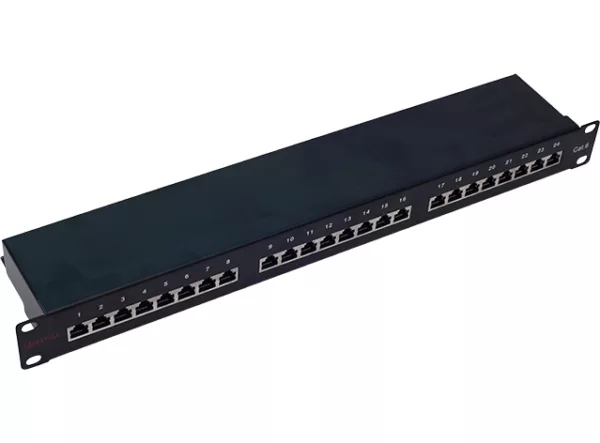

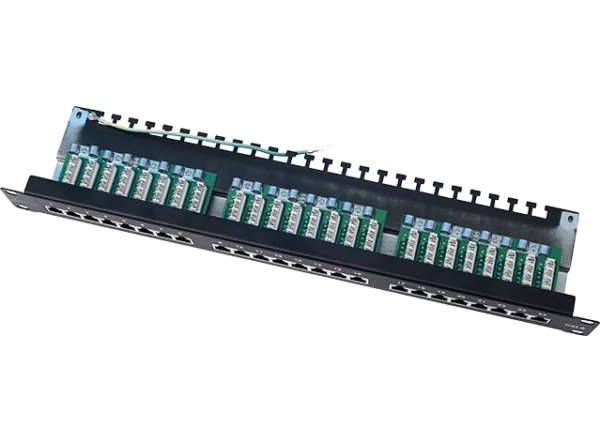

🛠️ ExTell CAT 6A Shielded Patch Panel – 24 Ports
The ExTell CAT 6A Shielded Patch Panel (Model: E6A24S3L-PM) is engineered to deliver superior performance and protection for high-speed data networks. Designed to minimize electromagnetic interference (EMI) and radio frequency interference (RFI), this panel is ideal for environments requiring enhanced data security, such as government, healthcare, and manufacturing sectors.
🔧 Key Features
-
Port Configuration: 24 RJ45 shielded ports
-
Compatibility: Supports CAT 6A standards for 10 Gigabit Ethernet applications
-
Design: Toolless and easy to install
-
Protection: Dust protection features to maintain performance integrity
-
Compliance: Meets UL 1862 standards.
⚙️ Technical Specifications
Electrical Characteristics
-
Voltage Rating: 150 V max
-
Current Rating: 1.5 A max
-
Insulation Resistance: ≥ 500 MΩ at 100 V DC
-
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz for 1 minute
-
Contact Resistance: ≤ 20 mΩ
-
IDC Contact Resistance: ≤ 2.5 mΩ.
Materials
-
Housing: Fire-retardant and impact-resistant polycarbonate (FR and IR PCB), UL 94V-0 rated
-
Pin Contacts: Phosphor bronze alloy with 50 micro-inch gold plating
-
IDC Compatibility: Supports 22–26 AWG cables
Environmental Conditions
-
Operating Temperature: -10°C to +60°C (14°F to 140°F)
-
Storage Temperature: -40°C to +70°C (-40°F to 158°F)
-
Relative Humidity: Up to 93%
