π§ Key Features
-

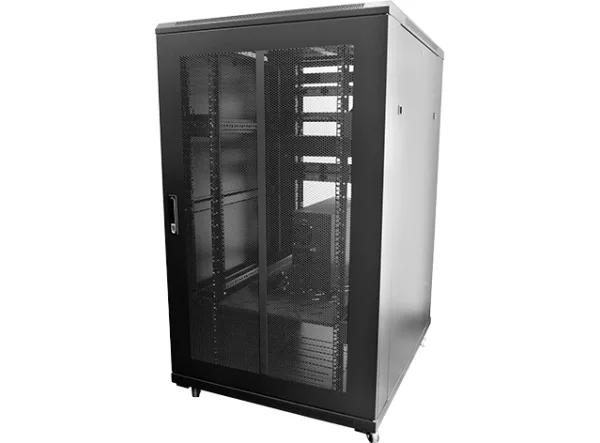

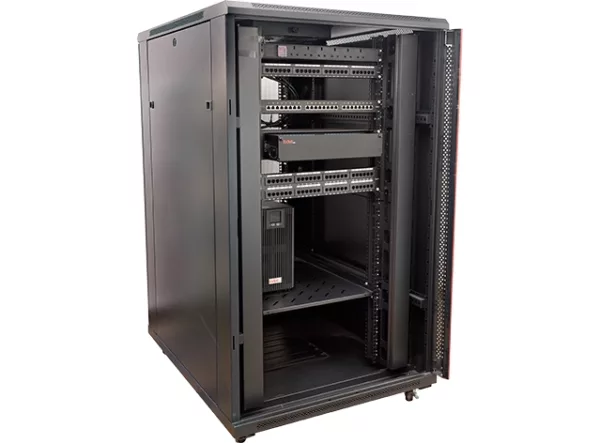

Model: EFC2706DG-BK
-
Rack Units: 27U
-
Mounting Type: Floor Standing
-
Material: SPCC Cold-Rolled Steel
-
Color: Black
-
Front Door: Tempered Glass with Lock
-
Rear Door: Mesh with Lock for improved ventilation
-
Side Panels: Removable with Optional Locks
-
Cable Entry: Top and Bottom Knockout Panels for easy cable management
-
Ventilation: Perforated Mesh Rear Door and Side Panels for optimized airflow
-
Load Capacity: Up to 60 kg
-
Dimensions:
-
Width: 600 mm
-
Depth: 800 mm
-
Height: Approximately 1300 mm
-
-
Degree of Protection: IP20
-
Surface Finish: Degreasing, Phosphoric, Powder Coated for corrosion resistance
-
Standard Compliance: ANSI/EIA RS-310-D, IEC 297-2, and DIN 41494 standards for safety and compatibility
β Compliance & Standards
-
ANSI/EIA RS-310-D
-
DIN 41497 Part 1
-
IEC 297-2
-
DIN 41494 Part 7
-
GB/TB3047.2-92
π¦ Package Contents
-
1 Γ ExTell 27U Network Server Cabinet (EFC2706DG-BK)
-
Mounting Hardware for installation
-
Set of Keys for Front Glass and Rear Mesh Doors
-
Installation Manual for easy setup
π Applications
-
Data Centers
-
Telecommunication Rooms
-
Network Equipment Housing
-
Server Rooms in Small to Medium Enterprises (SMEs)
-
Offices and Home Offices
