⚡ Key Specifications
-

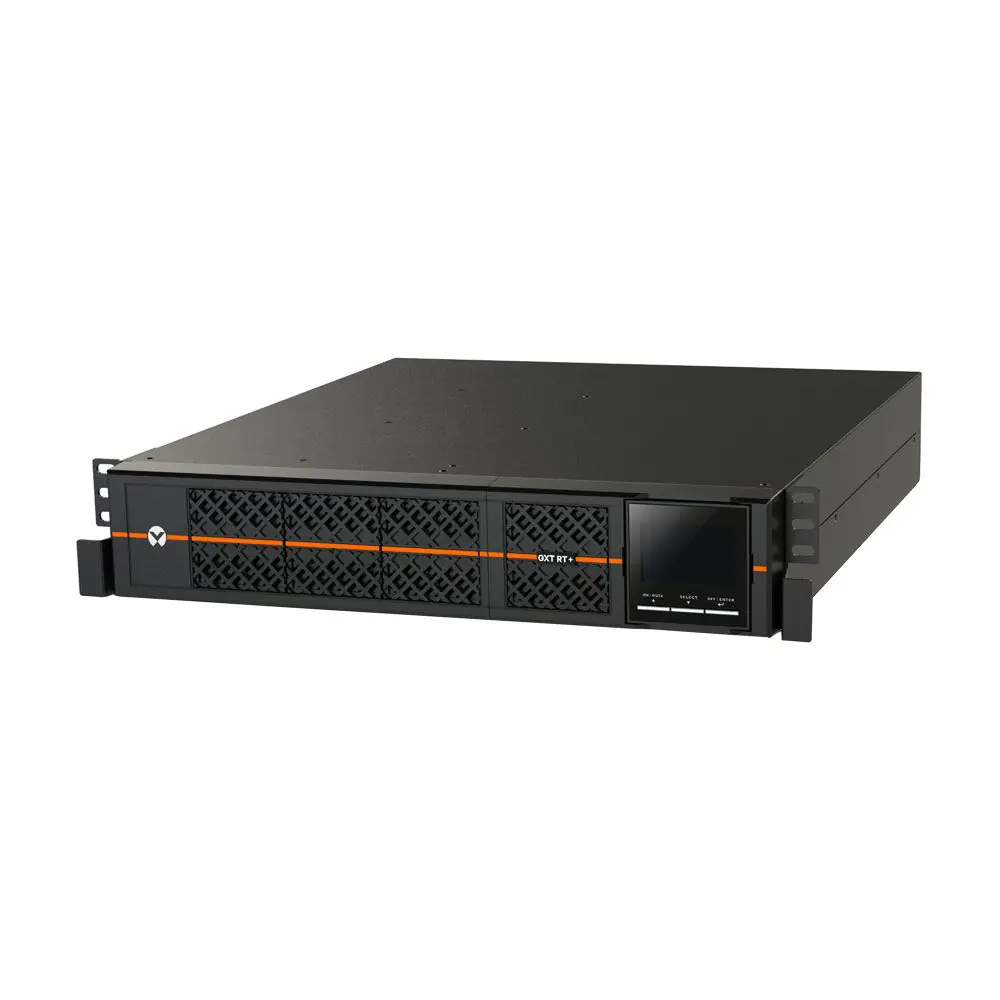

Model: GXTRT-3000IRT2UXL
-
Capacity: 3000 VA / 2700 W
-
Topology: Online Double Conversion
-
Power Factor: 0.9
-
Efficiency: Up to 90% in normal mode at full load
-
Form Factor: Rack/Tower Convertible (2U)
🔌 Input
-
Nominal Voltage: 230V AC (user-selectable 220/240V)
-
Voltage Range: 120–300V AC
-
Frequency: 50/60 Hz (Auto-sensing)
-
Input Connection: IEC C20
🔋 Battery
-
Type: Sealed Lead-Acid, Maintenance-Free
-
Quantity: 4 x 12V/9Ah
-
Backup Time:
-
Approximately 10.5 minutes at 50% load
-
Approximately 3.3 minutes at 100% load
-
-
Recharge Time: 4 hours to 90% capacity
-
Hot-Swappable: Yes
🔌 Output
-
Voltage: 230V AC (user-selectable 220/240V)
-
Frequency: 50/60 Hz
-
Waveform: Pure Sine Wave
-

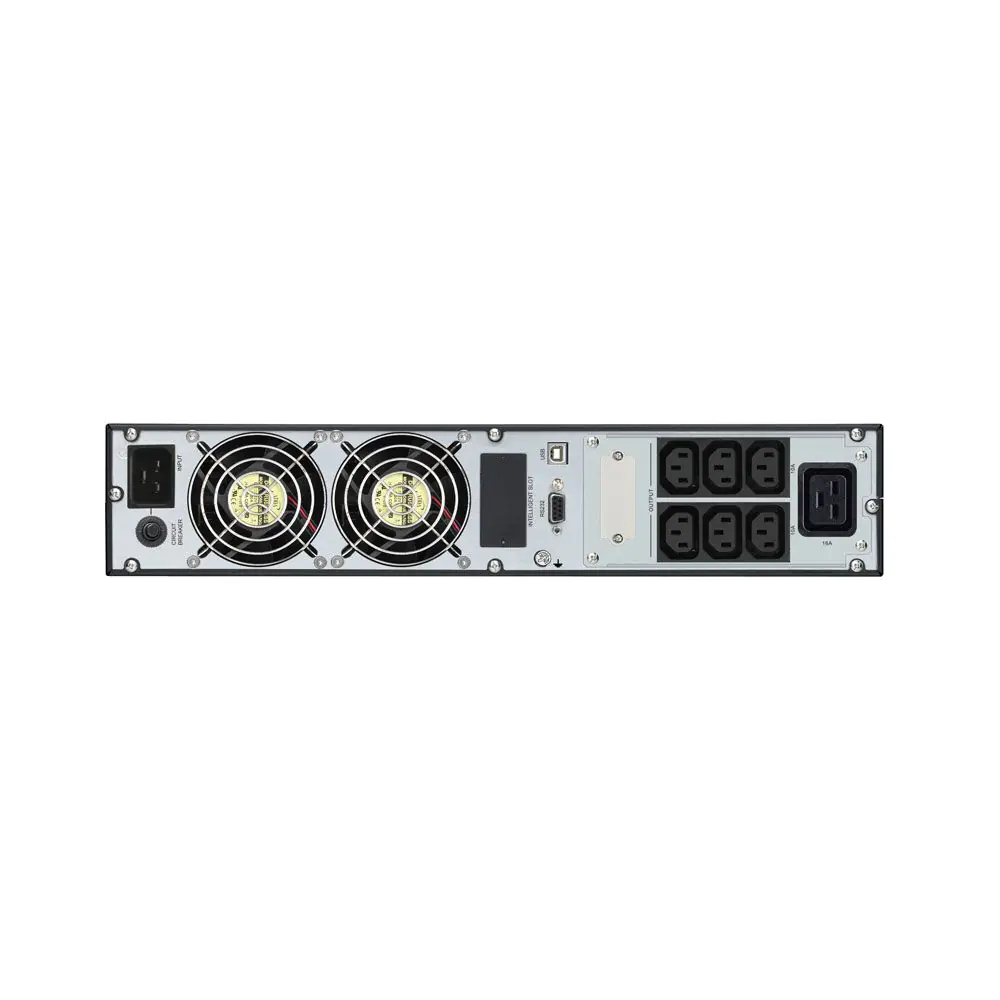

Output Connections: 6 x IEC C13, 1 x IEC C19
📡 Communication & Monitoring
-
Interfaces: USB, RS-232
-
Optional SNMP: Yes (via SNMP card)
-
Software: Compatible with Vertiv™ Power Assist for monitoring and management
🛡️ Protection Features
-
Automatic Voltage Regulation (AVR)
-
Overload Protection
-
Short Circuit Protection
-
Battery Overcharge Protection
-
Surge Protection
📏 Physical Specifications
-
Dimensions (W x D x H): 438 x 410 x 88 mm
-
Weight: Approximately 24 kg
-
Mounting: 2U Rack or Tower
🌡️ Environmental Conditions
-
Operating Temperature: 0°C to 40°C
-
Storage Temperature: -15°C to 50°C
-
Humidity: 0–95% RH (non-condensing)
-
Noise Level: <50 dB at 1 meter
