⚙️ Key Specifications
-
Model: GXTRT-2000IRT2UXL
-
Capacity: 2000 VA / 1800 W
-
Topology: Online Double Conversion
-
Output Power Factor: 0.9
-
Waveform: Pure Sine Wave
-
Efficiency: Up to 95% in ECO Mode​
🔌 Input
-
Voltage Range: 120–300V AC
-
Frequency: 40–70 Hz
-
Input Power Factor: 0.9​
-
Voltage: 220/230/240V AC
-
Frequency: 50/60 Hz (Auto-sensing)
-
Voltage Regulation: ±1%
-
Outlets: 6 x IEC C13​
🔋 Battery
-
Type: Sealed Lead Acid (VRLA)
-
Configuration: 4 x 12V, 9Ah
-
Hot-Swappable: Yes
-
Backup Time:
-
Up to 9 minutes at 50% load
-
Up to 3.2 minutes at full load
-
-
Recharge Time: Approximately 4 hours to 90% capacity​
🖥️ Display & Management
-
Display: LCD Panel for real-time status and configuration
-

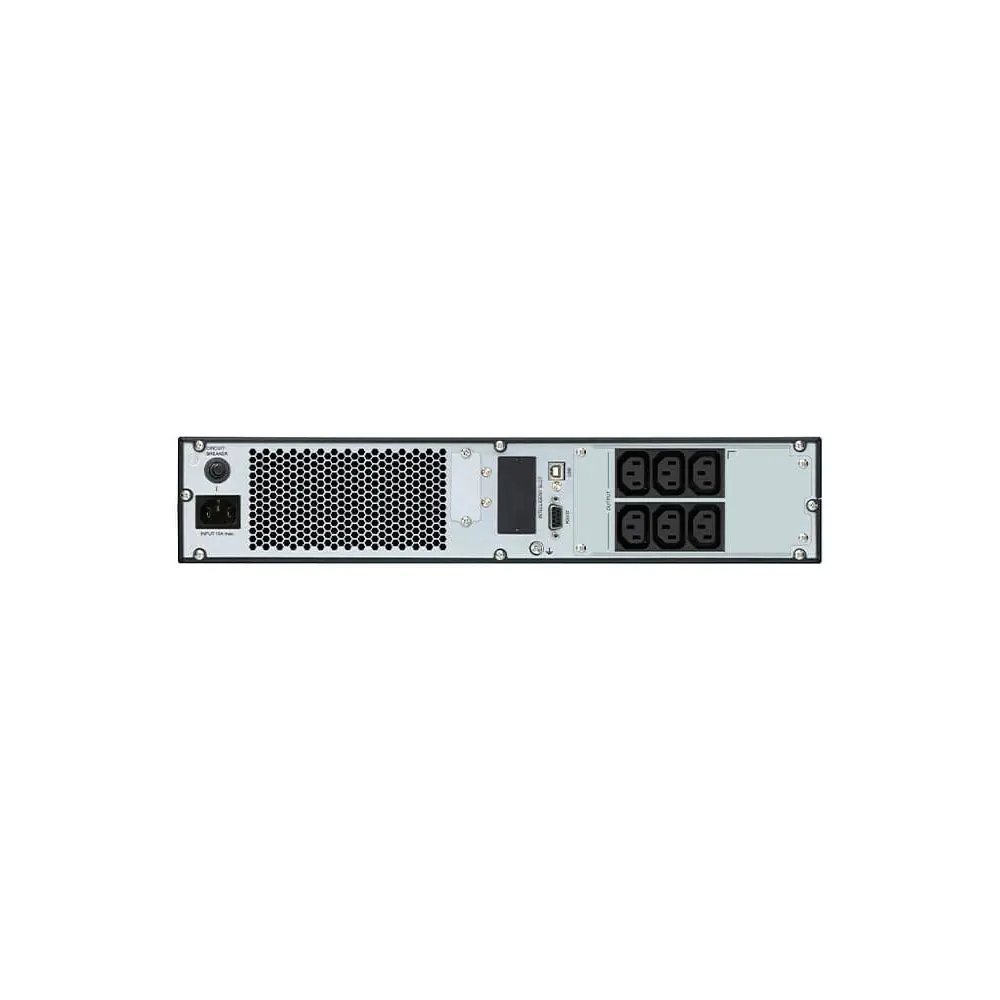

Communication Ports:
-
1 x USB
-
1 x RS-232 Serial
-
Optional SNMP (via RDU101 network card)​
-
đź§° Design & Form Factor
-

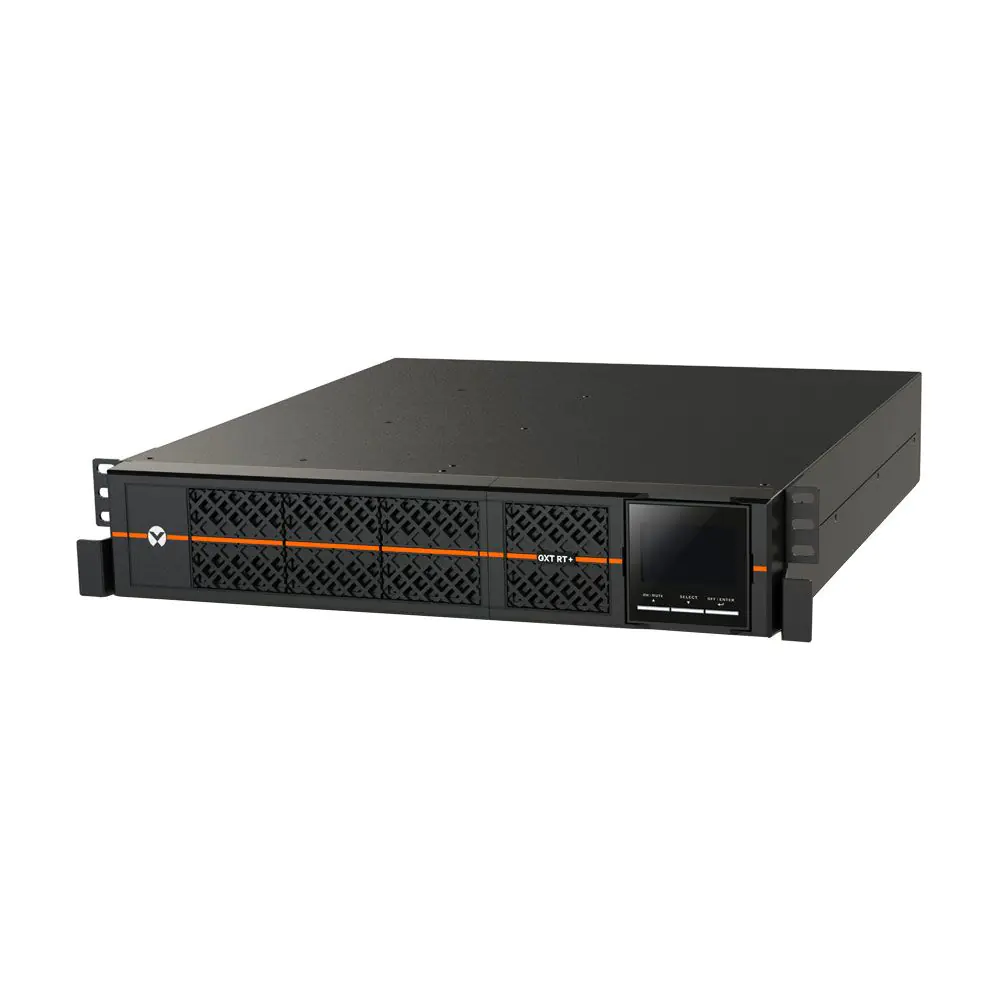

Form Factor: 2U Rackmount / Tower Convertible
-
Dimensions (W x D x H): 438 x 462 x 88 mm
-
Weight: Approximately 18.2 kg
-
Color: Black​
🌡️ Environmental Conditions
-
Operating Temperature: 0°C to 40°C
-
Storage Temperature: -20°C to 50°C
-
Relative Humidity: 20% to 95% (non-condensing)
-
Noise Level: ≤ 55 dB at 1 meter​
🛡️ Certifications & Compliance
-
Safety: CE Mark; IEC/EN 62040-1:2014
-
EMC: IEC/EN 62040-2:2006+AC:2006 Class A
-
Surge Protection: EN 61000-4-5:2005 Class 2 L-N, Class 3 L-G
-
RoHS Compliant: Yes
📦 Package Contents
-
UPS Unit
-
Input Power Cable
-
Output Power Cable
-
USB Cable
-
Rack Mount Kit
-
User Manual​
